FC Square Fiber Optic Adapter with solid body

Aminite supply the FC Square Fiber Optic Adapters with solid body types, including the single mode and multimode versions, there are UPC and FC adapters available. All these FC adapters feature either bronze or ceramic alignment sleeves to meet your specific design requirements.

SKU: A00084 Categories: ,
Tags: , , , ,
General Details
We offers the  FC Square Fiber Optic Adapter with solid body, this FC Square adapter including the single mode and multimode versions;

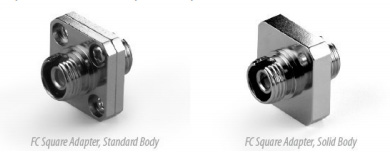

fc-square-adapterThe FC square adapter have  solid body and standard body types,and the FC square adapter in the solid body styles is available with nickel plated brass or nickel plated zinc housing. and feature nickel plated brass housing for corrosion resistance,All these FC adapters are designed for mounting in standard round cut out style panels and the features either bronze or ceramic alignment sleeves to meet your specific design requirements.

  1. Application
  •  CATV
  • Telecommunication networks
  • Local Area Networks (LANs)
  • Metro networks
  • Data processing networks
  • Industrial, military and medical
  1. Features
  • Ultra low insertion loss
  • Compact design
  • High precision alignment
  • Low insertion and return loss and back reflection
  • Corrosion resistant body
  • With or without flange options for installation flexibility
  • RoHS compliant
  1. Compliance
  • IEC60B74-14;F04 (JIS C5973);FOCIS-3;TIA/EIA-604-3A;
  • Telcordia GR-326-4 CORE Compliant
  • UL94 V-0 rated plastic housing or metal housings available
  • NTT-FC compatibility
  1. Specification
SPECIFICATION Zirconia SLEEVE Phosohor Bronze Sleeve
Insertion Loss Typical≤0.05dB,Max≤0.2dB Typical≤0.1dB,Max≤0.3dB
Durability <0.1dB Typical change,500 matings
Note:Zirconia tested with SMF Fiber,Phosphor Bronze sleeve tested with MMF
  1. Sleeves
  • Zirconia Sleeves Adapters

zirconia-sleeves-adapters

ZIRCONIA-SLEEVES-ADAPTOR-detail

  • Phosphor Bronze Adapter Sleeve

Phosphor-bronze-adapter-sleeve

PHOSPHOR-BRONZE-ADAPTOR-sleeve-detail

  1. Images
FC-Square-Adapter-Solid-Body

FC Square Fiber Optic Adapter in solid body
