Fiber Optic PLC Splitter LGX Module

The Fiber Optic PLC Splitter LGX Modules deliver on all these requirements. and features low insertion loss, low polarization dependent loss and, high port-to-port uniformity. The PLC Splitter LGX Modules are available in 4, 8, 16, 32 channel configurations with SC or LC pigtails.

SKU: A00031 Category:
Tags: , ,
General Details
AMINITE introduces a new family of PLC Splitter LGX Modules for today’s high-port count applications that demand the best performance and the highest reliability under the most adverse of environments. AMINITE’s PLC Splitter LGX Modules deliver on all these requirements. The PLC Module features low insertion loss, low polarization dependent loss and, high port-to-port uniformity. The PLC Splitter LGX Modules are available in 4, 8, 16, 32 channel configurations with SC or LC pigtails.

Fiber Optic PLC Splitter LGX Module

Fiber Optic PLC Splitter LGX Module

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Aminite provides whole series of 1xN and 2xN splitter products t hat are tailored for specific applications. All products meet Telecordia-GR-1209-CORE and Telecordia GR-1221-CORE requirements.
Our OEM-friendly packaging provides the flexibility to meet the broadest design requirements.They are widely used in the optical fiber market.

  1. Application
  • FTTX Deployments
  • Telephony Systems
  • CATV Supertrunking Links
  • Wide Area Networks
  • Analog and Digital PON Networks
  1. Features
  • Rugged Construction
  • Telcordia Compliance Tested
  • Low Input Polarization Sensitivity
  • Customized Packaging Available
  • High Quality Connector Fanouts Available
  1. Compliance
  • Telecordia-GR-1209-CORE
  • Telecordia GR-1221-CORE
  1. Specification

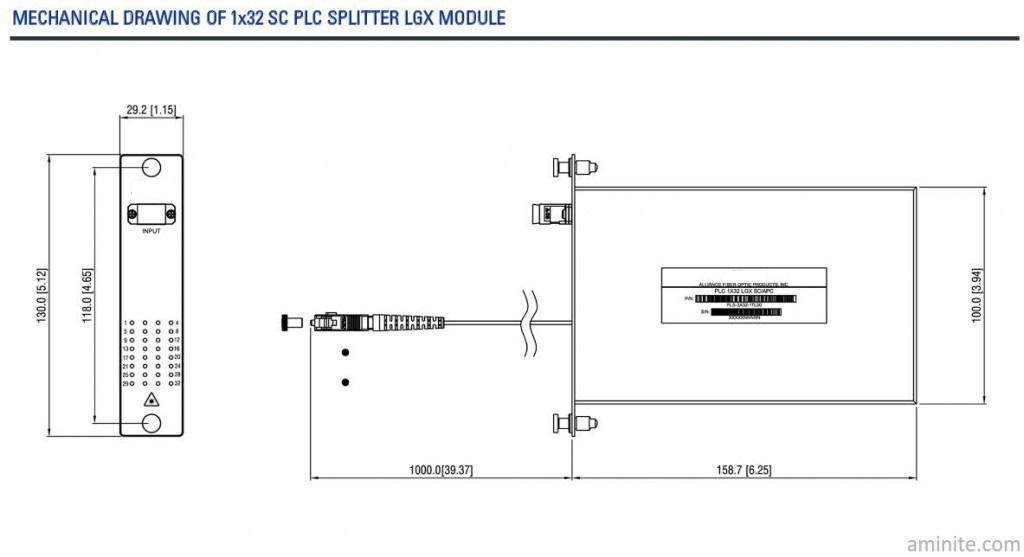

SPECIFICATIONS - PLC SPLITTER LGX MODULE1PACKAGE DIMENSIONS

Fiber-Optic-PLC-Splitter-LGX-Module-Specification
