Fiber Optic PLC Splitter QuickPath Splitter Modules

AMINITE's Fiber Optic PLC Splitter QuickPath Splitter Module is a new family of products designed to expand FTTH network functionality as well as cut installation time and costs in the field.these quickPath splitter module are widely used in the optical fiber market.

SKU: A00034 Category:
Tags: , ,
General Details
AMINITE’s Fiber Optic PLC Splitter  QuickPath Splitter Module is a new family of products designed to expand FTTH network functionality as well as cut installation time and costs in the field. This product line was designed to meet the needs of implementing PON networks in residential and MDU applications. QuickPath allows the provider to pick wall or rack mount boxes, or use the individual compact splitter modules invarious existing FDH cabinets.



QuickPath-Splitter-Modules

Fiber Optic PLC Splitter QuickPath Splitter Modules

The AMINITE QuickPath PLC splitter modules all use bend insensitive fiber with a 15 mm bend radius to minimize loss in applications where space is at a premium. The QuickPath compact splitter modules come connectorized with FOC ITL approved SC/APC connectors and terminations on 2 mm BIF cables.
All components are 1209 and 1221 compliant.They are widely used in the optical fiber market.

  1. Application
  • FTTx Deployments
  • Telecommunication Systems
  • Wide Area Networks
  • Analog and Digital PON Networks
  1. Features
  • Compact & Lightweight Cassette Design
  • 15mm Bend Radius BIF SC/APC Pigtails
  • Rugged Construction
  • High Stability and Reliability
  1. Compliance
  • Telecordia-GR-1209-CORE
  • Telecordia GR-1221-CORE
  • 1209 and 1221 compliant
  1. Specification

SPECIFICATIONS - SPLITTER MODULE

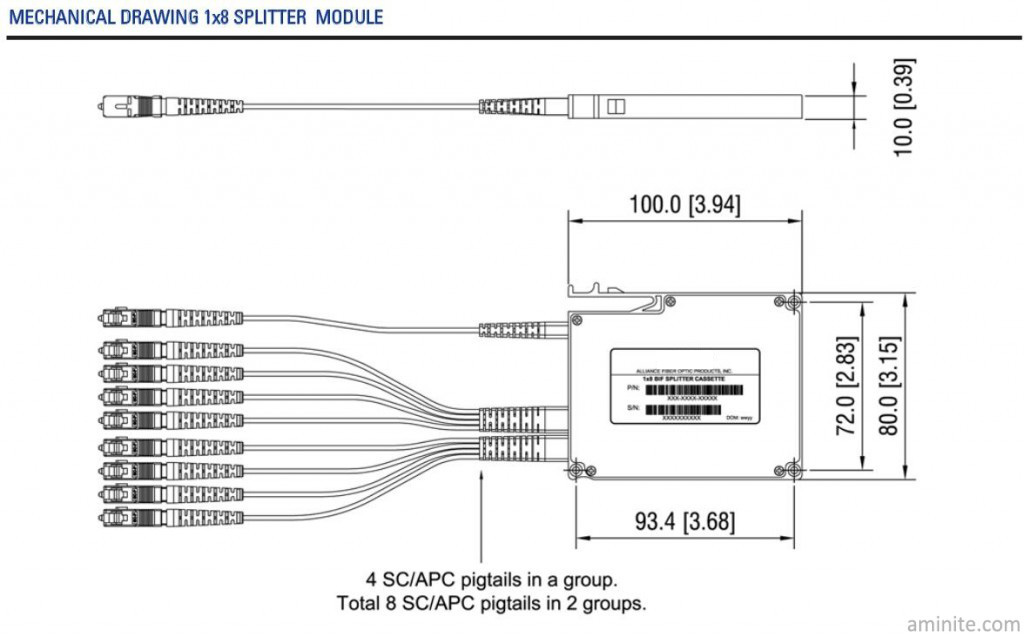

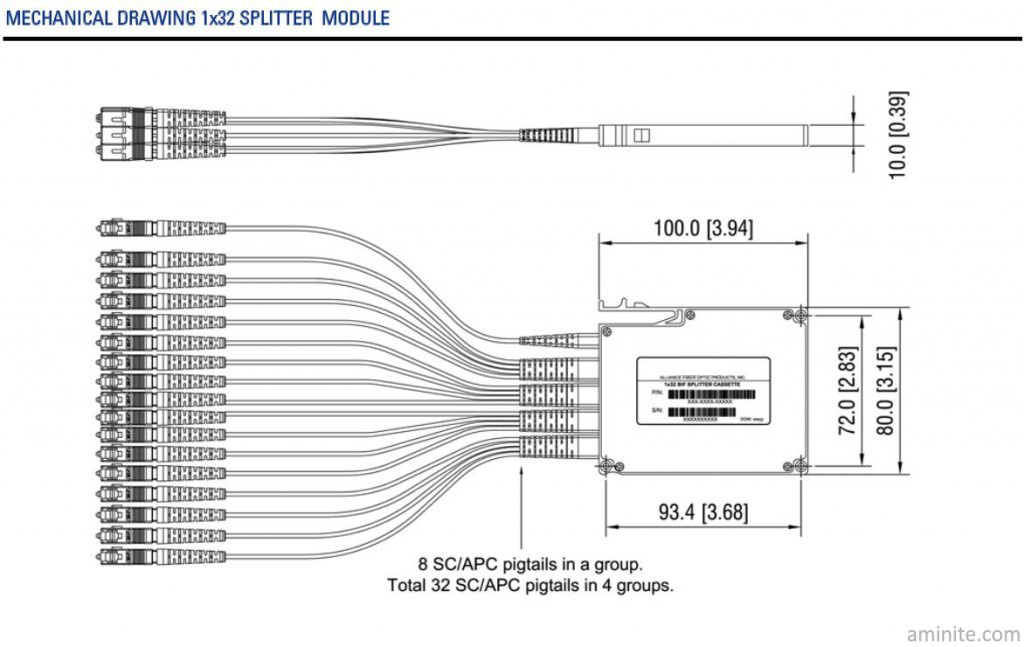

PACKAGE DIMENSIONS

0

Fiber-Optical-PLC-Splitter-QuickPath-Splitter-Modules

Fiber-Optic-PLC-Splitter-QuickPath-Splitter-Modules
