SC Fiber Optic Patch Cord,SC Fiber Patch Cable

Aminite supply single mode and mutlimode SC fiber optic patch cords, SC LC,SC ST ,SCFC,SC MU,SC MTRJ,SC E2000 fiber patch cable,etc types. custom design SC fiber patch cable assemblies, 9/125,50/125,62.5/125,SM,MM,simplex,duplex fiber optic jumpers,ect.

SKU: A00106 Category:
Tags: , , , ,
General Details
We offers high quality SC Fiber Patch Cords and SC Optic Patch Cables;
All of Fiber Optic Patch Cord 100% pass 3D interferometer test.
All Fiber Optic jumper Connector are design according to IEC standard; Insertion loss ≤0.15dB;
Different cable diameter option: 1.6mm, 1.8mm, 2.0mm, 2.4mm, and 2.8mm are available.
OFS, Draka, Corning, YOFC optical fiber available.

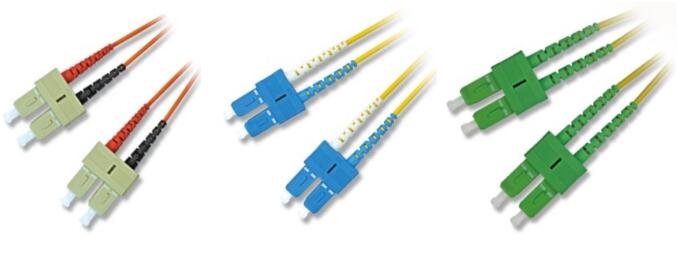

sc-fiber-optical-patchcords
SC fiber patch cord is one of the earliest stype and one of the most commonly used fiber optic cable, it is convenient to use and cost saving – It is the most cheapest type fiber optic cable. SC fiber patch cable is widely uesed in fiber optic networks. SC fiber patch cable is with zirconia sleeve and plastic housing.

  1. Application
  • Telecommunication System
  • Testing Facility
  • CATV System
  • Long-haul Telecommunication
  • LAN System
  1. Features
  • PC,UPC,APC polishing available
  • High Return Loss
  • Low Insertion Loss
  • High Reliability and Stability
  • Available for single mode / multimode and simplex / duplex
  • 0.9mm ,2.0mm,3.0mm diameter cable available
  1. Compliance
  • Compliant with : IEC-61754-20
  • Compliant with : Tecordia-GR-326-CORE
  • Compliant with : RoHS
  1. Specification
Fiber Mode SM

(G652D/G657A1/G657A2)

MM

(OM1/OM2/OM3/OM3/OM4)

Connector Type SC Fiber Optic Patch Cord
Diameter (mm) 0.9mm / 1.8mm/ 2.0mm / 3.0mm…
End-face Finishing PC UPC APC PC
Insertion Loss (dB) ≤0.30 ≤0.30 ≤0.30 ≤0.30
Return Loss (dB) ≥45 ≥50 ≥60 ≥35
Exchangeability (dB) ≤0.20
Repeatability (dB) ≤0.20
Operating Temperature(℃) -40 ~ + 75
Storage Temperature (℃) -40 ~ + 85
Operating Wavelength(um) 1310,1550 850
Cable material PVC, LSZH

Note: Contact our engineers for the parameter of high precision patchcords.



  1. Cable
Lemvigh-Müller Normal 0.9mm 1.8mm 2.0mm 3.0mm
SM White Yellow
MM White Orange
OM3 Aqua
OM4 Violet

Note

Ⅰ. All cable are LSZH. PVC or other material for option.

Ⅱ. 12 colors would be available. (Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua)

Ⅲ. The other OD requirement could be discussed.

  1. Types

SC-Fiber-Optic-Patch-Cord
