SC/APC to SC/APC Simplex Adapter With Removable Shutter

The SC/APC to SC/APC Simplex Adapter With Removable Shutter manufacture by Aminite have a good price and high quality, they have the features:compact design,high precision alignment and High precision sleeve,low insertion and return loss and back reflection and so on.

SKU: A00101 Categories: ,
Tags: , , ,
General Details

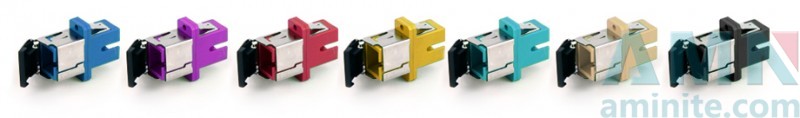

We offers the SC/APC to SC/APC Simplex Adapter With Removable Shutter, this SC Simplex Adapter have different color to choose:

SC APC Simplex Adapter With Removable Shutter

SC/APC to SC/APC Simplex Adapter With Removable Shutter

Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. Our fiber optic adapter can quick and easy connections of single mode and multimode fibers.
Typical SC fiber optic adapters are with plastic housing and for single mode. We also supply the metal housing SC fiber optic adapters. Most of these SC to SC adapters come with ceramic sleeves, while there are bronze sleeve SC adapters which are generally multimode types.
Single mode SC Fiber Optic Adapters are designed for mounting in standard rectangular cut out style panels. This series features either bronze or ceramic alignment sleeves to meet your specific design requirements.

  1. Application
  • CATV
  • Local Area Networks (LANs)
  • Telecommunication networks
  • Metro networks
  • Data processing networks
  • Multimedia
  • Industrial and military
  1. Features
  • SC/APC adapter Type
  • Compact design
  • High precision alignment and High precision sleeve
  • High performance
  • Low insertion and return loss and back reflection
  • With or without flange options for installation flexibility
  • Choice of metal or plastic housing, mount styles & flange options
  • Free-hanging or panel-mount design.
  • Dust caps protect against debris and contamination
  • RoHS compliant
  1. Compliance
  • IEC60B74-14;F04 (JIS C5973);FOCIS-3;TIA/EIA-604-3A;
  • Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
  • UL94 V-0 rated plastic housing or metal housings available
  1. Specification
SPECIFICATION Zirconia SLEEVE Phosohor Bronze Sleeve
Insertion Loss Typical≤0.05dB,Max≤0.2dB Typical≤0.1dB,Max≤0.3dB
Durability <0.1dB Typical change,500 matings
Note:Zirconia tested with SMF Fiber,Phosphor Bronze sleeve tested with MMF
  1. Sleeves
  • Zirconia Sleeves Adapters

zirconia-sleeves-adapters

ZIRCONIA-SLEEVES-ADAPTOR-detail

  • Phosphor Bronze Adapter Sleeve

Phosphor-bronze-adapter-sleeve

PHOSPHOR-BRONZE-ADAPTOR-sleeve-detail

  1. Images
    SCAPC-Simplex-Adapter-With-Removable-Shutter

    SC/APC to SC/APC Simplex Adapter With Removable Shutter
