LC/APC to LC/APC Duplex Fiber Optic Adapter

Aminite supply the LC/APC to LC/APC Duplex Fiber Optic Adapter, This LC to LC adapter is used for a cable to cable fiber optic connection or cable to equipment fiber optical connection, They have a compact design.

SKU: A00088 Categories: ,
Tags: , , , ,
General Details

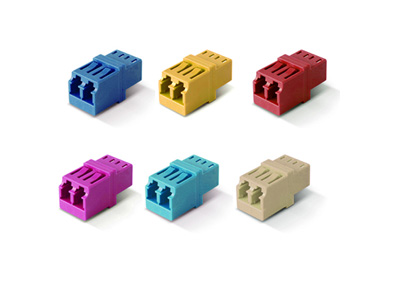

We offers the LC/APC to LC/APC Duplex Fiber Optic Adapter, this LC to LC adapter have different color to choose:

LC/APC to LC/APC Duplex Fiber Optic Adapter

LC/APC to LC/APC Duplex Fiber Optic Adapter

The LC Adapter are designed for mounting in panels with rectangular cutouts. These LC adapters have high precision alignment and high precision sleeve so the feature bronze or ceramic alignment sleeves which provide precision mating for both Multimode and Single Mode adapter applications.This LC to LC adapter is usually used for a cable to cable fiber optic connection or cable to equipment fiber optical connection.

  1. Application
  • Gigabit ethernet
  • Video
  • CATV
  • Active device/Transceiver interface
  • Telecommunication networks
  • Metro networks
  • Premise installations
  • Multimedia
  • Industrial and military
  1. Features
  • LC/UPC adapter Type
  • Compact design
  • Color coding & polarization
  • High precision alignment and High precision sleeve
  • High performance
  • Low insertion and return loss and back reflection
  • With or without flange options for installation flexibility
  • RoHS compliant
  1. Compliance
  • IEC60B74-14;F04 (JIS C5973);FOCIS-3;TIA/EIA-604-3A;
  • Telcordia, ANSI, TIA/EIA, and ISO compliance
  • UL94 V-0 rated plastic housing or metal housings available
  1. Specification
SPECIFICATION Zirconia SLEEVE Phosohor Bronze Sleeve
Insertion Loss Typical≤0.05dB,Max≤0.2dB Typical≤0.1dB,Max≤0.3dB
Durability <0.1dB Typical change,500 matings
Note:Zirconia tested with SMF Fiber,Phosphor Bronze sleeve tested with MMF
  1. Sleeves
  • Zirconia Sleeves Adapters

zirconia-sleeves-adapters

ZIRCONIA-SLEEVES-ADAPTOR-detail

  • Phosphor Bronze Adapter Sleeve

Phosphor-bronze-adapter-sleeve

PHOSPHOR-BRONZE-ADAPTOR-sleeve-detail

  1. Images
    LC APC to LC APC Duplex Fiber Optic Adapter

    LC APC to LC APC Duplex Fiber Optic Adapter
