ST/APC Single mode Fiber Optic Pigtail

Aminite offers the full range of ST/APC Single mode Fiber Optic Pigtails in high quality and with competitive price,this ST pigtail with the good packaging, All kind of type.we can also customize your specification of fiber optic pigtails

Tags: , , , , ,
General Details
We offers the ST/APC Single mode Fiber Optic Pigtail, these ST fiber pigtails are with premium grade connectors and with typical 0.9mm outer diameter cables. They are with different cable color, cable diameter and jacket types optional.

ST/APC Single mode Fiber Optic Pigtail

ST/APC Single mode Fiber Optic Pigtail

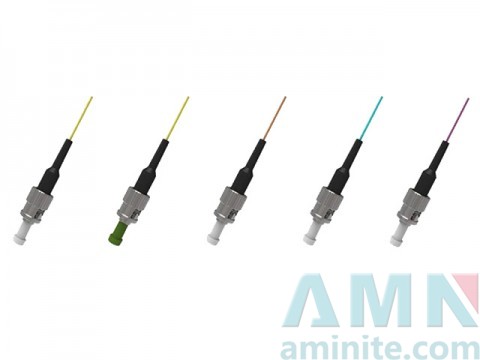

The ST fiber optic pigtail connector housing color can be Blue, green, beige, Aqua and purple,the 0.9mm FC pigtail cable can be tight buffer, loose tube, PVC, LSZH, Hytrel materials.The ST fiber optic pigtail connector is with metal outer body and with a long spring loaded ferrule hold the optical fiber. ST Pigtail Cable can be 9/125 single mode or 50/125 multimode or 62.5/125 multimode. ST fiber pigtails connector ferrule interface can be PC, UPC or APC. ST pigtail is one of the older generations of connector, but it is still widely used in fiber optic communications, especially for multimode networks.

  1. Application
  • CATV
  • Metro Applications
  • Active device termination
  • Test equipment
  • Wide Area Networks (WANs)
  • Telecommunication networks
  • Local Area Networks (LANs)
  • Data processing networks
  • Premise installations
  • Industrial and Military
  1. Features
  • FC Pigtail Type
  • One-piece construction & pull-proof design
  • Low insertion loss and low back reflection
  • Free-floating ceramic ferrule
  • Precision anti-rotation key
  • UL-rated plastic housing and boots in a variety of colors
  • Telcordia style boots
  • Corrosion resistant body (Nickel Plated Brass)
  1. Compliance
  • TIA 568-A & ISO 11801
  • Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
  1. Fiber Optic Pigtail Specification
  • SPECIFICATIONS    Type

Standard,  Master,  High Power

SC/PC,  SC/APC,  SC/PC  Duplex

FC/PC,   LC/APC,  E2000,  MU/PC

MTRJ/Female, MTRJ/Male,  MPO/MTP

DIN/PC,  D4/PC,  SMA/PC

  • FIBER  TYPE

SM   G.652  G.653  G.654 G.655  G.656  G.657

MM   OM1(62.5/125um) OM2  OM3  OM4

  • CABLE  TYPE

Simplex   /    Duplex

ø4.1mm / ø3.0mm / ø2.0mm / ø1.8mm / ø1.6mm / ø1.2mm /

(PVC  or  LSZH  or  Hytrel  or  OFNP)

ø0.9mm / ø0.6mm

(tight  Buffer or Loose tube)

SC/FC/ST
SPECIFICATION Single  Mode Multi  Mode
Insertion  Loss Typical≤0.08dB;

Max≤0.20dB

Typical≤0.15dB;

Max≤0.25dB

Return  Loss PC/UPC≥50 dB ;

APC≥65dB



N/A
Durability <0.1 dB  Typical  change, 500  matings
LC/MU/LC-LX.5
SPECIFICATION Single  Mode Multi  Mode
Insertion  Loss Typical≤0.05dB;

Max≤0.15dB

Typical≤0.10dB;

Max≤0.25dB

Return  Loss PC/UPC≥55 dB ;

APC≥65dB



N/A
Durability <0.2 dB  Typical  change, 500  matings <0.2 dB  Typical  change, 500  matings
D4/DIN/SMA
SPECIFICATION Single  Mode Multi  Mode
Insertion  Loss Typical≤0.15dB;

Max≤0.25dB

Typical≤0.20dB;

Max≤0.30dB

Return  Loss PC/UPC≥50 dB ;

APC≥65dB



N/A
Durability <0.20 dB  Typical  change, 500  matings <0.20 dB  Typical  change, 500  matings
E2000/MT-RJ
SPECIFICATION Single  Mode Multi  Mode
Insertion  Loss Typical≤0.20dB;

Max≤0.40dB

Typical≤0.20dB;

Max≤0.30dB

Return  Loss PC/UPC≥45 dB ;

APC≥60dB



N/A
Mating Cycles 1000 1000
MPO
SPECIFICATION Single  Mode Multi  Mode
Insertion  Loss Typical≤0.20dB;

Max≤0.70dB

Typical≤0.15dB;

Max≤0.30dB

Return  Loss PC/UPC≥25 dB ;

APC≥60dB



N/A
Durability <0.1 dB  Typical  change, 500  matings <0.1 dB  Typical  change, 500  matings

Repeatability: ±0.1dB

Operation  Temperaturel: -40℃~+85℃

  • GEOMETRY  REQUIREMENT

Ferrule  Endface Radius

7mm≤ R ≤12mm(APC)               7mm≤ R ≤25mm(Standard)

Apex  Offset  ≤ 30um(Master)      Apex  Offset  ≤50um(Standard)

Undercut  -50nm ≤ U ≤ 50nm

PM Patchcord  Specification            Insertion   Loss  ≤ 0.4dB

Extinction  Ratio  ≥20 dB
